High Bed Trailer vs Low Bed Trailer: What’s the Difference?

I once made a delivery that almost didn’t happen.

The machine was tall, an awkward piece of equipment meant for a job site in the mountains. I used a high bed trailer because it was what I had. But halfway through the route, I hit an unexpected problem, a bridge with a clearance too low.

I had to backtrack and find another way. Wasted fuel. Wasted time. And a very unhappy client waiting.

That’s when I realized something you might be wondering right now: Should I be using a high bed or a low bed trailer?

If you’re asking that question, this article is for you. I’ll walk you through their key differences such as height, weight capacity, loading needs, road clearance, and more. You’ll learn which trailer fits your cargo, your routes, and your budget. By the end, you’ll have a clear answer and the confidence to choose the right trailer for the job.

So, let’s start!

Quick Comparison

Before we dive deep, here’s a quick side-by-side look. This will give you a feel for how high bed and low bed trailers stack up, so you can spot the key differences right away:

That’s the overview but stick with me. The next sections break down each trailer’s strengths in detail.

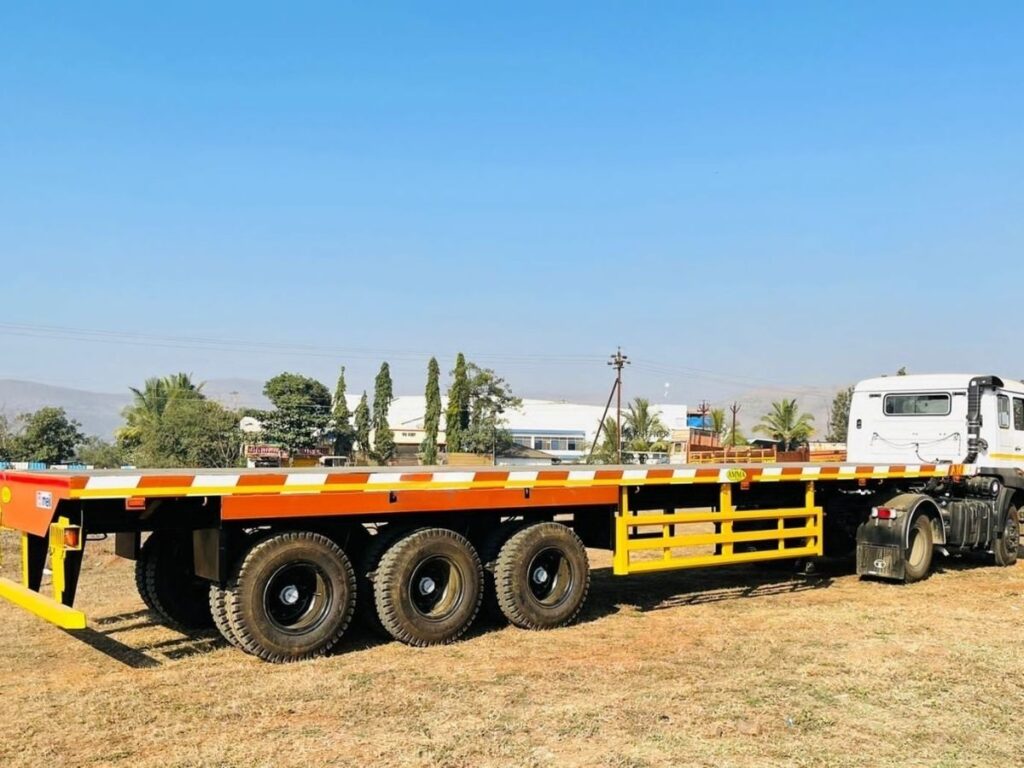

1. What Is a High Bed Trailer?

If you’ve seen a flatbed trailer out on the highway, there’s a good chance it was a high bed. These are the standard trailers you’ll find in many fleets. They’re simple, strong, and get the job done for most types of cargo.

A high bed trailer has its deck positioned above the wheels. That means the floor of the trailer sits higher off the ground compared to other types, especially low beds. This setup gives it more ground clearance, which can help when driving on uneven roads or going over bumps and dips.

But that height also comes with a trade-off. You lose vertical space for taller cargo. And if your load is too high, you may run into trouble with bridges or tunnels.

High bed trailers are popular because they handle general cargo well. You’ll see them moving:

• Pallets of building materials
• Wooden crates
• Light machinery
• Packaged goods
• Industrial supplies

Basically, if the load isn’t too tall or too heavy, a high bed trailer often works fine.

When I was starting out, I used high beds for nearly everything. They were easy to find and simple to load. But I also had a few close calls with clearance issues.

So how do you know if a high bed trailer is right for you?

Ask yourself:

• Is your cargo under the legal height limit once loaded?
• Will you be driving through areas with strict bridge clearance?
• Are you hauling standard freight that doesn’t need special handling?

High beds are reliable. But they aren’t the right fit for every job.

Next, let’s look at low bed trailers and why they’re better for certain hauls.

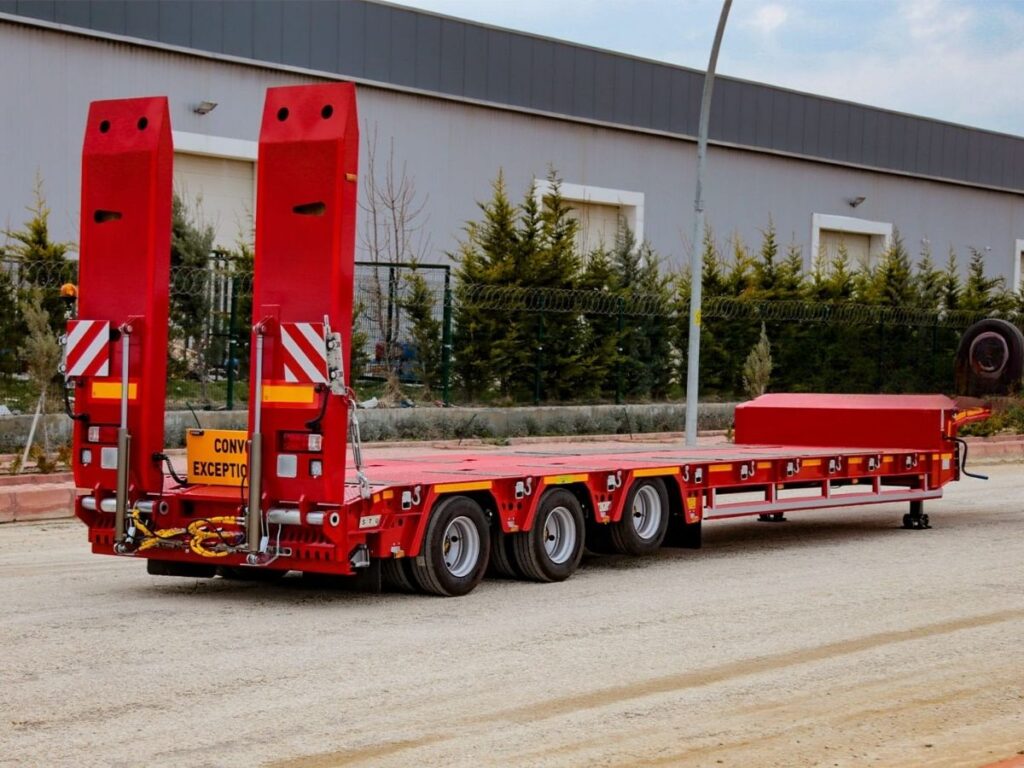

2. What Is a Low Bed Trailer?

Now that you know what a high bed trailer is, let’s look at its opposite: the low bed trailer.

This trailer type has a deck that sits between or underneath the axles. That design drops the trailer closer to the ground. It’s much lower than a standard flatbed. And that lower height? It makes a big difference.

Low bed trailers are made for taller and heavier loads. You’ll often see them hauling:

• Excavators
• Bulldozers
• Generators
• Construction machines
• Large industrial tanks
• Wind power equipment

If the cargo is oversized or extremely heavy, chances are it’s sitting on a low bed.

Because the deck is lower, you can load tall equipment without going over the legal height limit. In many countries, the height limit is around 4 meters (13 feet). A high bed trailer with a tall machine on it can easily pass that mark. A low bed trailer keeps you under it and keeps your route legal and safer.

I learned this the hard way.

I once took a job moving a forklift across provinces. The client said it would “probably fit” on my high bed. I checked the specs quickly, loaded it, and hit the road. Less than 30 minutes in, I reached a highway overpass that was too low, I had to stop, call for backup, and swap to a low bed. That mistake cost me time, fuel, and my reputation.

So here’s the question: are you hauling something tall or heavy?

Then a low bed trailer is worth looking into.

It gives you the space and strength you need for demanding loads.

3. Key Differences at a Glance

Now that you’ve seen how high bed and low bed trailers work on their own, let’s look at how they compare side by side. These 3 areas can make or break your decision:

Ground Clearance & Loading Height

This is one of the first things you’ll notice.

A high bed trailer sits higher off the ground. That means the deck is taller, which can make loading tricky. You’ll often need ramps, forklifts, or even cranes to get equipment up there. And if your cargo isn’t strapped properly, a higher deck increases the risk of tipping, especially on turns or bumpy roads.

On the other hand, a low bed trailer sits much lower. This makes it easier to load heavy or tall machines, especially if you’re working without much equipment. The deck’s lower height adds stability, too.

Load Height Limit

Let’s talk about legal height.

Most countries set the transport height limit around 4 meters (or about 13 feet). That includes the trailer and the cargo on top of it. If you go over that, you’ll need a special permit or be forced to take a longer route.

A high bed trailer eats up more of that vertical space. So if your cargo is even a little tall, you might hit that limit.

Low beds help avoid that problem. They let you haul taller equipment without needing to apply for permits every time.

Weight Capacity

Weight matters, too.

• High bed trailers usually handle medium loads, like packaged goods or smaller machines.
• Low bed trailers are built for heavy-duty work. Some models can haul up to 80 or even 100 tons.

Think about your cargo. Is it tall, heavy, or both?

That’s how you’ll know which trailer can handle the job safely.

4. Industry Application

Some trailers are better for general cargo, others are built for extreme weights or oversized machines. Let’s look at how each trailer fits into different types of jobs:

High Bed Trailer Application

High bed trailers are a go-to for many transport businesses. They’re flexible and easy to use, especially for common types of freight.

You’ll often see high beds used for:

• Furniture and home décor
• Pallets of boxed goods or machines
• Packaged tools or spare parts
• Pipes, steel bars, or light construction materials

If your cargo is packaged, stackable, or fits within standard height and weight limits, high beds make things simple.

They’re easier to find.

They work with most forklifts.

And they don’t take much prep work to load.

I remember hauling custom-made cabinets for a hotel project. The client needed the items quickly, and the packaging was clean and solid. A high bed trailer made that job fast, smooth, and stress-free.

Low Bed Trailer Application

Low bed trailers step in when the load gets serious.

You’ll find them used in industries like construction, energy, and mining. They carry:

• Bulldozers
• Excavators
• Tower cranes
• Wind turbines
• Industrial tanks
• Heavy generators

These machines are tall and very heavy. Loading them on a high bed would push you over the height limit or make the trip unsafe. That’s why low beds are built the way they are.

I once watched a crew move a power station unit using a low bed. It was massive, but the trailer handled it like it was made for the job. No wobbling. No height issues. Just a clean move from start to finish.

So think about what you’re hauling and where it’s going.

The right trailer often depends on what your work demands. Not every job fits a standard trailer, and not every route is smooth.

At Rhinotrail, we build semi-trailers that actually work for your business, not just your budget.

Let’s talk about your cargo and the trailer that’s built to carry it.

5. Operation & Handling

Once you’ve picked the trailer that fits your cargo, there’s still one more thing to think about: how it actually performs on the ground. Some trailers are easier to load. Some are easier to steer.

These small details can make a big difference when you’re out on the road or stuck in a tight yard.

Loading & Unloading

Let’s start with loading.

High bed trailers sit higher off the ground. That extra height means you’ll often need extra help—forklifts, cranes, steel ramps, or loading docks. If you’re moving smaller crates or palletized goods, that might not be a big deal. But when you’re hauling machines, those tools aren’t optional, they’re required.

The risk also goes up.

A higher deck makes loading more unstable, especially if the cargo is top-heavy. I once helped load a tracked skid steer onto a high bed with metal ramps, and even with straps and a spotter, it felt shaky the entire time.

Low bed trailers, by comparison, make the process feel a lot safer. Because the deck is lower, you can often load directly from ground level. Many low beds come with hydraulic goosenecks, which let the front section lower and detach so machines can roll on without any lifting.

It’s faster. It’s easier. And it’s a lot less stressful especially when working with large or delicate equipment.

Maneuverability

Now let’s look at how these trailers handle once you’re moving.

High bed trailers are more agile. They’re easier to turn and do better in tight spaces, which makes them a good fit for urban deliveries or jobs that require a lot of cornering.

Low bed trailers are longer and often carry heavier loads. That extra size can make sharp turns a challenge. They don’t always handle bumps or steep inclines as smoothly, and they need more room to move.

So ask yourself:

Do you have space to load with heavy equipment?

Are your routes wide open or tight and tricky?

Those answers will help guide your choice, just as much as cargo size or weight.

6. Maintenance, Durability & Parts Availability

After you think about how the trailer handles on the road, the next big factor is how easy it is to maintain. Whether you’re buying for your own use or to support clients, maintenance can either save you time—or create unexpected downtime.

Let’s break it down for both agents and terminal users.

For Agents and Dealers

If you manage a fleet or supply trailers to others, parts availability matters a lot. A breakdown can stall operations and damage trust with your customers.

High bed trailers tend to be simpler. The frame design is basic, and most parts like tires, axles, and suspension are common across many brands. That makes replacement faster and cheaper. You can usually find parts locally or order them without much trouble.

Low bed trailers, on the other hand, often include extra systems like hydraulic goosenecks, folding ramps, or detachable axles. These parts can be harder to find, especially if you’re dealing with a specific model or brand. Repairs might take longer and cost more.

If you’re running a rental business or repair shop, this can affect how quickly you get a trailer back in service.

For Terminal Users

Now, if you’re using a trailer for your own work—maybe to move machines, materials, or finished goods—the wear and tear will depend on your load.

High beds often last longer when used for light jobs. Furniture, boxed items, or pallet loads don’t push the frame too hard.

Low beds, though built for tough work, can wear faster if you’re constantly moving heavy or uneven loads. Hydraulic parts may need regular inspection and service.

I usually tell buyers to always ask the manufacturer about spare part support before making a decision. It’s not just about the trailer today, it’s about keeping it running tomorrow.

7. Cost Comparison

After looking at maintenance and handling, there’s one more factor that often makes or breaks a decision: cost. And we’re not just talking about what you pay upfront. It’s about how much you’ll spend over time on fuel, upkeep, and even what you might get back if you sell or rent the trailer later.

Upfront Purchase Price

If you’re working within a budget, this is usually the first thing you check.

High bed trailers are typically more affordable.

Most models range from $7,000 to $15,000 USD, depending on the size and axle configuration. They’re built with a basic frame and don’t require extra systems like hydraulics, which helps keep the cost low.

Low bed trailers, on the other hand, usually cost more.

Prices typically fall between $18,000 and $35,000 USD, and that number can go higher for specialized designs. They’re built with heavier materials to handle big loads, and many come with hydraulic goosenecks or folding ramps, which add to the cost.

When I bought my first low bed, I had to really think it through. But I needed it for heavier machines, and in the end, it paid off.

Fuel and Transport Efficiency

Cost doesn’t stop once the trailer is yours. You’ll also need to think about daily use—especially fuel.

Low beds are heavier, and that means higher fuel consumption. Over long hauls, the extra weight can make a difference.

High beds are lighter and more efficient for everyday use, especially if you’re transporting standard cargo on paved roads.

Resale or Rental Value

This is something many agents and dealers overlook.

Low bed trailers tend to hold strong value, especially in areas where construction, mining, or energy projects are active. Their ability to move heavy, oversized equipment keeps them in demand.

High beds, though less specialized, are easier to rent out. They work well for general freight, local deliveries, or lighter materials, things that always need moving.

If you’re an agent or business owner, take time to study your market. What are your clients asking for? Are you near a port, a factory, or a mining area? Those answers can help you make the smarter investment.

Cost isn’t just about price, it’s about how well the trailer fits your work, your fuel budget, and your future plans.

Conclusion

That day I had to turn back under the low bridge? It taught me to stop guessing and start planning.

You’ve now seen the full picture. What each trailer is built for, where they shine, and how to choose based on your cargo, route, and goals.

So what’s next?

You don’t have to figure it out alone. Whether you’re hauling machinery or shipping crates, making the right choice starts here.

What kind of loads are you working with? Need help deciding which trailer fits?

Contact us today and let’s talk through it!
