Tanker Truck Dimensions: What You Need To Know

I once sent the smallest tanker in the yard to what seemed like a regular fuel delivery. It looked fine—until we had to refill halfway through the job.

Turns out, capacity matters just as much as length or height. And that’s something I’ve kept in mind ever since.

If you’re involved in moving liquids—fuel, chemicals, or even milk—you need to know exactly how tanker truck dimensions affect how much, how fast, and how safely you can deliver.

In this article, I’ll explain all the key tanker truck sizes, what they mean, and why they matter. I’ll cover length, width, height, and volume.

I’ve worked with transport teams, construction companies, and logistics providers who all had the same question. And now, I’m sharing what I’ve learned with you.

By the end, you’ll have the information you need to make better decisions for your jobsite or delivery.

Let’s dive in!

1. What Is a Tanker Truck?

Back when I first started in fuel transport, I thought all tanker trucks were the same. But after dealing with a few wrong fits and failed deliveries, I learned quickly: that’s not the case.

A tanker truck is a vehicle built to carry liquids or gases in bulk. These liquids can be anything from gasoline to milk to industrial chemicals. You’ve probably seen them on highways: large, round tanks on wheels. But what you may not know is how many different types there actually are.

Each type is built for a specific kind of load. Here’s a quick breakdown:

• Fuel Tankers: These are used to carry gasoline, diesel, or jet fuel. They are built with compartments to keep fuel types separate and prevent shifting during transit.
• Chemical Tankers: Used to haul industrial chemicals like acids or solvents. Most are lined with special materials to prevent corrosion and protect the cargo.
• Food-Grade Tankers: Made to carry liquids like milk, juice, or syrup. They must meet strict hygiene standards and are usually made of stainless steel.
• Water Tankers: Common in agriculture, construction, or firefighting. They’re used to move large volumes of clean or recycled water.
• Gas Tankers: Built to transport compressed gases like propane or natural gas. These tanks are pressure-rated and follow special safety codes.

Each type has its own construction rules and use cases. For example, food-grade tankers must be cleaned thoroughly after each load (FDA, 21 CFR Part 110).

Why does this matter to your needs?

Because using the wrong type—even if the size is right—can lead to fines, delays, or wasted product!

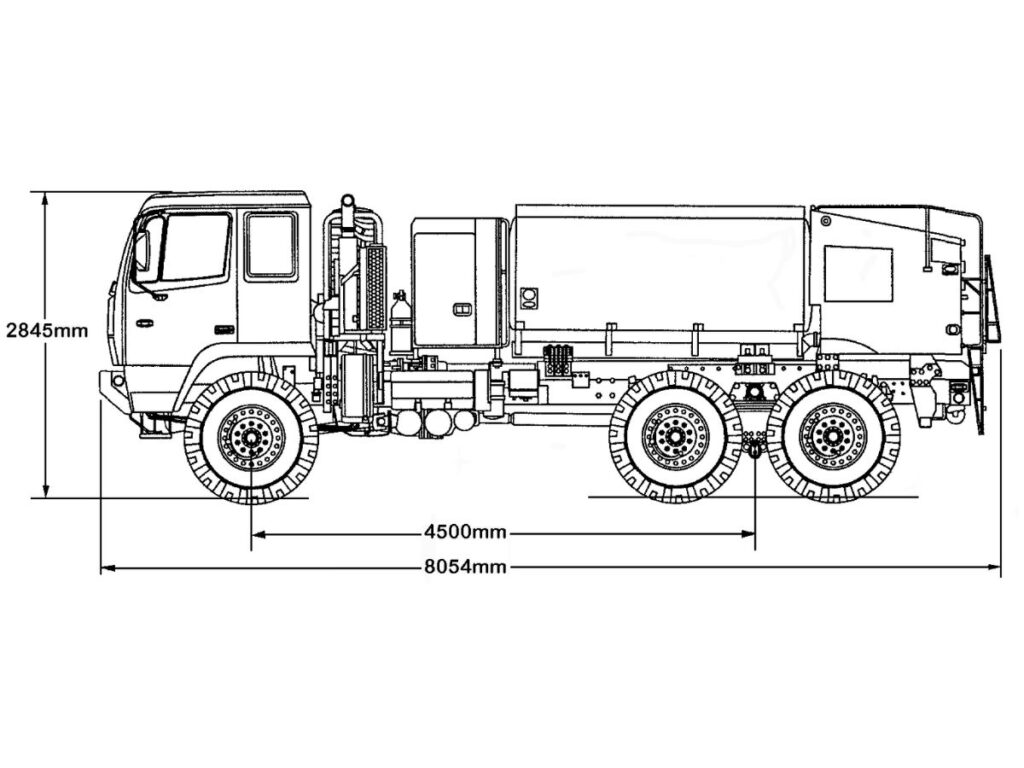

2. Standard Tanker Truck Dimensions

Not every tanker fits every job.

I’ve seen trucks get stuck between site gates. I’ve also seen them turned away from warehouses because of low roof clearance. And in most cases, the issue wasn’t the driver—it was the truck’s size not matching the jobsite.

Before you send a tanker on the road, you need to know the key dimensions. These are the basic numbers that affect clearance, turning, and total capacity. Most trucks fall within a standard range, but even a few inches can make a big difference.

Let’s break down the main dimensions you should know:

Length: 40 to 53 Feet

Most standard tanker trailers are between 40 and 53 feet long.

Shorter tankers are easier to maneuver in cities or tight areas. Longer ones are used for long hauls and larger loads. Keep in mind: the total vehicle length includes both the cab and trailer.

If you’re delivering to construction sites or small yards, always check the available turning space. A 53-foot trailer may not be the best choice for short driveways or narrow roads.

Width: 8.5 Feet (102 Inches)

The standard legal width for tankers in the U.S. is 8.5 feet or 102 inches (FMCSA, Title 49 CFR Part 658).

This limit applies to most states, but always check local rules if your route crosses state lines. Tankers carrying food or chemicals may have extra layers of insulation or protective panels, but the external width still needs to stay within legal limits.

If you’re delivering to a site with tight gates, parked vehicles, or older buildings, measuring your clearance ahead of time can save you a return trip.

Height: 11 to 14 Feet

Standard tanker trucks are usually 11 to 14 feet tall.

This is a critical number. Many routes have bridges, signs, or tunnels with strict clearance heights. Even indoor facilities or covered loading docks may have height limits.

One low-hanging beam or forgotten bridge can stop the job cold.

If you’re unsure, measure the highest point of your loaded truck—not just the tank itself. Dome lids, ladders, or vents can add height.

Wheelbase: 180 to 260 Inches

The wheelbase is the distance between the front and rear axles of the truck or trailer.

Most tanker trucks have a wheelbase between 180 and 260 inches. A longer wheelbase helps with load stability, especially at high speeds. But there’s a tradeoff: longer wheelbase trucks need more room to turn.

In tight or urban delivery sites, a shorter wheelbase can help you get in and out faster.

3. Capacity and Volume Based on Tanker Truck Dimensions

Tanker capacity refers to how much liquid a truck can carry safely. It’s measured in gallons or liters, depending on your region. But here’s the thing: volume depends on more than just size.

Tank shape, wall thickness, baffles (internal dividers), and local road weight rules can all affect how much you can legally carry. You might have room in the tank, but the truck could be too heavy once filled.

Here’s a breakdown of common capacity ranges based on tanker size:

Small Tankers: 3,000 – 5,000 Gallons

These are often used for local or short-distance deliveries. They’re great for city deliveries, gas stations, farms, or tight work sites. With a smaller tank, drivers can get in and out faster, and maneuver around narrow roads more easily.

I’ve used these for farm fuel drops, and they’re ideal when the job doesn’t call for volume—just precision and speed.

Medium Tankers: 5,500 – 7,000 Gallons

These serve regional routes or multi-stop deliveries. They offer a good middle ground: more volume than small tankers, but easier to manage than highway-sized rigs. Companies delivering to multiple retail locations in a day often go with this size.

This is the range we use the most. It hits that sweet spot between capacity and flexibility—especially when road access is unpredictable.

Large Tankers: 8,000 – 11,600 Gallons

Built for long-haul and highway transport. These are the big rigs you see running across states, often carrying fuel, chemicals, or food-grade liquids. They require more space to operate and more planning for loading docks, bridges, and turns.

We only send these out when everything is mapped in advance—because once they’re full, they’re heavy and not easy to adjust mid-route.

Every load is different. Some routes have strict weight limits. Others have tight entryways. That’s why knowing both capacity and jobsite conditions is so important.

4. Dimensional Requirements by Region and Regulation

I once helped a client send a U.S. tanker overseas. Everything looked fine—until it landed in Europe and couldn’t legally hit the road. That’s when I learned that tanker dimensions vary a lot by region.

If you’re planning cross-border transport or buying trucks internationally, it’s important to know what’s allowed where you operate. Let’s look at the basics by region:

United States (FMCSA Guidelines)

In the U.S., tanker trucks follow FMCSA rules under Title 49.

• Max Trailer Length: 53 feet
• Max Gross Vehicle Weight (GVWR): 80,000 pounds without special permits

But that’s not all. States have their own rules for height clearance, bridge laws, and overweight permits. What’s legal in Texas might not be legal in New York.

Ever had to reroute because a bridge couldn’t take your load weight? That’s more common than you think.

European Union

Tankers in the EU must follow EN 13094 and ADR standards (for dangerous goods).

• Max Length: Around 16.5 meters (roughly 54 feet) for articulated vehicles
• Built shorter and narrower to fit tight roads and older city layouts

If you’re used to U.S. rigs, European tankers may look small—but they’re built for precision over volume.

Asia-Pacific

In this region, rules change fast depending on the country.

• Australia: Allows longer multi-trailer road trains, especially in remote areas
• India: Uses shorter tanks for city traffic; max width often below 2.6 meters due to narrow roads and congestion

Some of our deliveries in India had to switch to smaller tankers just to get through city gates. Whether you’re hauling across states or across borders, knowing the rules ahead of time can save you major delays.

That’s why working with a globally experienced manufacturer matters. Rhinotrail specializes in region-specific tanker trailers, custom-built to meet the legal standards and logistical realities of wherever you operate. We make sure your trailer fits the job and the road—legally and safely.

5. Factors That Influence Tanker Dimensions

Tanker trucks don’t follow a one-size-fits-all rule. Their dimensions change depending on what they carry, how far they travel, and even how they’re built. Over time, I’ve learned that the best fit isn’t always the biggest tank. It’s the one that fits the cargo and the jobsite.

Let’s look at the key factors that affect tanker size and layout:

Type of Cargo

The liquid being hauled shapes the design of the tank itself.

• Thick or heavy liquids, like molasses or crude oil, often need shorter tanks. A shorter body reduces stress on the tank and keeps movement more stable.
• Hazardous materials, such as acids or flammable fuels, require added safety features—like, like thicker walls, pressure relief systems, or internal linings.

These features can reduce usable space but increase safety, which is always the top priority in these loads.

Tank Material

Different materials are used based on what’s inside the tank and how far it needs to go.

• Aluminum: Lighter and corrosion-resistant, good for fuel. It lets you carry more volume before hitting weight limits.
• Stainless steel: Heavier but highly durable. Common for chemicals and food-grade cargo due to its easy-to-clean surface.
• Carbon steel: Cheaper and tough, used for non-corrosive loads like water or basic oils.

Material choice also affects how long the tank lasts and what kind of maintenance it needs over time.

Axle Configuration

The number and placement of axles influence both load control and legal weight limits.

• 2-axle Tankers: More compact, ideal for lighter loads or short trips.
• 3 to 5 Axles: Spread out the weight, which helps when carrying more volume across longer distances.
• Steering Axles or Tag Axles: Help with maneuvering but may extend the total length.

We’ve had to adjust axle setups before just to meet local road laws, especially when working in mountain or rural zones.

Operational Use

Where the tanker travels matters just as much as what it carries.

• Urban Routes: Need smaller tanks that turn tighter and fit through city streets. Backing into narrow alleys or busy gas stations demands shorter wheelbases.
• Long-Haul Work: Requires larger tanks to make the trip worthwhile. These trucks often carry more gallons and ride on bigger frames for stability.

Choosing the right layout for the job helps avoid problems once the truck leaves the yard.

Every factor—cargo, materials, axles, and route—plays a part in how tanker dimensions are set.

6. Custom vs. Standard Tanker Truck Dimensions

Some tankers are built for general use. Others are built for your use. Knowing the difference can help you decide whether to stick with a standard model or request something built around your exact needs.

Custom tankers aren’t for everyone—but if your site, cargo, or route needs something more precise, they can be worth the investment.

7. Tips for Choosing the Right Tanker Dimensions

Choosing the right tanker size can save time, money, and stress. I’ve made the mistake of focusing only on capacity—only to realize the tanker didn’t fit the job or route. Here’s what I wish I knew earlier.

Tip #1 Know What You’re Hauling

Different liquids have different needs. Fuel, chemicals, milk, or water vary in weight, safety requirements, and flow behavior. Some may need baffles to control sloshing, while others require multiple compartments. The right dimension depends on both volume and type of cargo.

Tip #2 Check Legal Weight Limits

Larger doesn’t always mean better. If your fully loaded tanker exceeds axle or gross weight limits, you risk fines and wear on your suspension. Make sure the tanker size matches what your state or region allows. Local road rules matter more than many realize.

Tip #3 Measure Route Clearance

Don’t overlook bridge heights, tight corners, or loading docks. I once had to reroute an entire delivery due to a low bridge I didn’t plan for. Know the total height and length of your tanker setup. City deliveries often need shorter or lower trailers.

Tip #4 Think About Unloading

Some sites need rear unloading, others side or bottom discharge. The wrong setup can slow down your driver—or, or worse, make unloading impossible. Pick a tanker layout that matches where and how your customers receive goods. It’ll make every drop-off faster and safer.

Conclusion

That small tanker I once sent out? It didn’t just waste time—it taught me to stop guessing.

You now understand what affects tanker size, shape, and performance.

If you’re ready to get serious about choosing the right fit, Rhinotrail can build it. We manufacture semi-trailers designed to meet real job demands—no guessing required.

Contact us today and let’s talk about your next tanker build.
